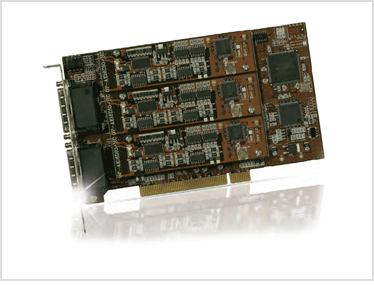

TMC-AD448P

|▶ 특징
4 Axes motion controller
48 Channel isolated digital input
48 Channel isolated digital output
Maximum output frequency of 4 MPPS
Trapezoidal and S-curve velocity profiles
10 home return modes with searching
Any 2~3 of 4 axes linear interpolation
Any 2 of 4 axes circular interpolation
Velocity and Position change override
Hardware-controlled position compared trigger
output
Manual pulse input interface
Simultaneous start/stop operation up to 2 axes
Hardware emergency input
Over-current protection circuit
(Only OP-16DIO-HC)
[파생모델]
TMC-AD400P (4축 0/0점 DI/DIO)
TMC-AD416P (4축 16/16점 DI/DIO)
TMC-AD432P (4축 32/32점 DI/DIO)

|▶ Specification
ITEM   DESCRIPTION
Number od controllable axes
4 axes
ASIC LSI
MCX314AL
Internal reference clock
16MHz
Pulse rate setting range
1 PPS ~ 4,000,000 PPS
Position pulse setting range
-134,217,728 ~ +134,217,727 pulses
Up/down counter counting range
0 ~ 268,435,455 or -134,217,728 ~ + 134,217,727
Velocity profiles
Constant, Trapezoidal and S-Curve velocity profile
Pulse output options
CW/CCW, OUT/DIR
Mechanical signal input pins(Photo-Coupler)
±LMT, ORG
Servo Interface I/O pins (Photo-Coupler)
Input : ALM and INP Output : RST, C.CLR and SON
Encoder signal input pins (Photo-Coupler)
EA/EB and EZ
Manual Pulse signal input pins
MPG_A and MPG_B
Position compare output pin
CMP
PCI Local bus interface
32bit PCI bus, Rev. 2.1, 33MHz
Connectors

4 * 68-pin VHDCI-type connector
5V Slot power supply (input)
+5V DC±5%, 1150mA Max
Operation temperature
0℃ ~ 50℃
Storage temperature
-20℃ ~ 70℃

Humidity
10% ~ 80% Non Condensing
Dimension
174.6 (W) mm X 106.7 (L) mm

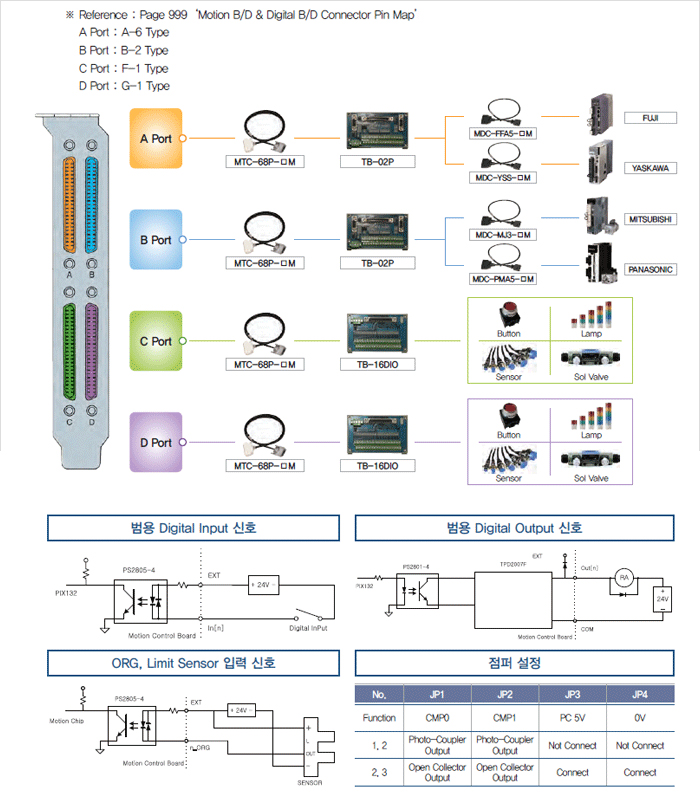

|▶ Connector
