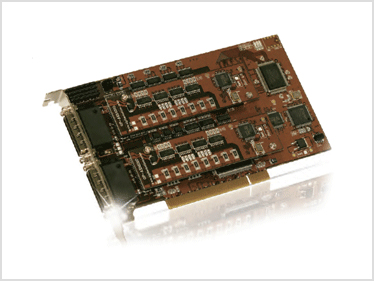

TMC-AE64DIO

|▶ 특징

64 Channel isolated digital input

64 Channel isolated digital output

Up to 64 Channel Input Simultaneous Latch Function

Up to 64 Channel Output Simultaneous output

Function

Digital Input Integral Filter

Over-current protection circuit

[파생모델]

TMC-AE16DIO (16/16점 DI/DIO)

TMC-AE32DIO (32/32점 DI/DIO)

TMC-AE48DIO (48/48점 DI/DIO)

|▶ Specification

ITEM		DESCRIPTION
Max. Number of input		Digital Input 64 Channel
Max. Number of output		Digital Output 64 ChannelL
ASIC LSI		PIX132
Digital inputs		Input Common : 8 Channel
		Software Filter:1μs~32ms
		Simultaneous Latch:64 Channel
		Input response time:100μs
		Input resistance:4.7KΩ
		Input Voltage:24V
		Input Operating Current:5mA/ch
Digital outputs		Output common:8 Channel
		Output response time:10μs
		Simultaneous output:64 Channel
		Output type:Darlington sink drive
		Output voltage:24V
		OutputOperating Current:300mA/ch, 125mA/8ch
PCI Local bus interface		32bit PCI bus, Rev. 2.1, 33MHz (Universal board)
Connectors		4 * 68-pin VHDCI-type connector
5V Slot power supply (input)		+5V DC±5%, 190mA Max
Operation temperature		0℃ ~ 50℃
Storage temperature		-20℃ ~ 70℃
Humidity		10% ~ 80% Non Condensing
Dimension		174.6 (W) mm X 106.7 (L) mm

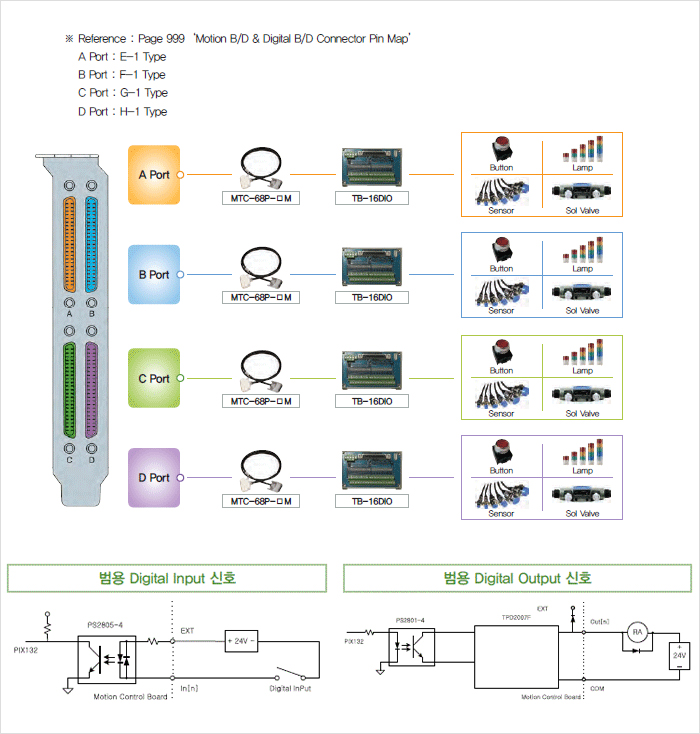

|▶ Connector
