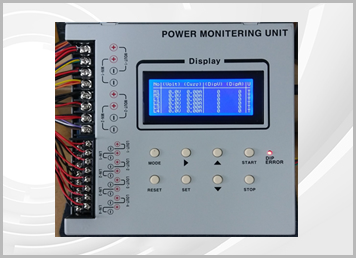

| Power Monitoring Unit(PMU_01) |
| |
|
|▶ 개요 |

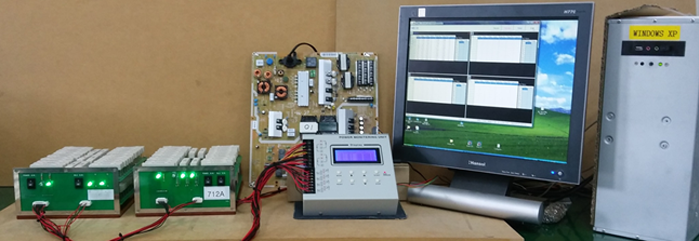

Host Pc EA vs PMU 1EA ~ PMU 4EA
|
|▶ 특징 |
| 1) |
SMPS Output 전압 /전류 측정 및 DIP 검출, Counter , Data 저장. |
| 2) |
Recipe Download 가능. |
| 3) |
Windows 기반 HOST PC Program. |
| 4) |

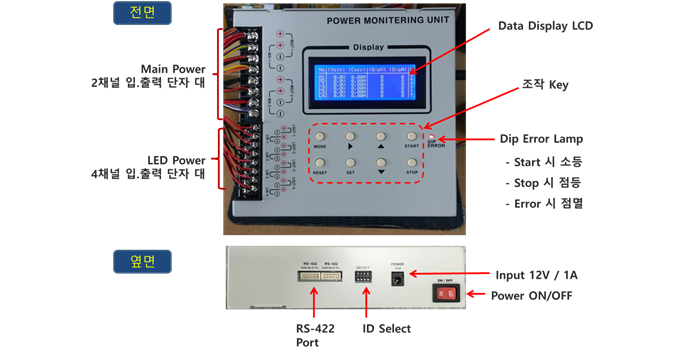

Function Switch 조작 – Channel별 Limit Voltage설정. |
| 5) |
Dip Counter 발생 상태 Display & Red LED 점멸. |
| 6) |
PMU #1~4 ID CORD부여. (DIP S/W) |
|
|
|
| |
|
ITEM
|
CONCEPTION
|
REMARK |
|
Size |
W:220 , H:40 , D: 220 |
|
Host PC Program |
Windows 기반 |
Master command
application |
Test Input Range |
Main 1,2CH : DC 0 ~ 30V / 20A
LED 1~4CH : DC 0 ~ 300V / 3A
|
|
Display Range |
Main 1,2CH : 00.0 V 00.00A
LED 1~4CH : 000 V 00.00A
|
|
Control 전원 |
INPUT: DC 12V / 1A
|
|
|
|
|
|
|
